Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for sale
|Vehicle Name||Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for sale - SCS5071ZYSE5|
|Engine Power &|
|Engine Brand||Chaoyang Diesel Engine co,. Ltd|
|Displacement / Power||3856ml / 70kw, 95HP|
|Engine Type||Turbocharged inner cooled, water cooling, 4 cylinder inline|
|Emission Stand||Europe III|
|Fuel tank capacity (L)||100L|
|Number of speeds,||5 Forward, 1 Reverse|
|Dimension (LxWxH)||5820x 1940 x 2080|
|No. of Axles||2|
|Tire||7.00R16 Radial tyre|
|Tire No.'s||6+1 spare|
|Track width F/R (mm)||1750/1586|
|Chassis load (kg)||2640 / 4720|
|Leaf Spring No.s||6/8+4|
|Service Brake||Compressed air brake|
|Parking Brake||Spring energy, compressed air operating on rear wheels|
|Weight & Dimension|
(With van box)
|Gross Vehicle Weight(kg)||7360|
|Rated Weight / load(kg)||2030|
|Appr/Dep Angle (°)||21/10|
|Ground Clearance (mm)||>=220|
|Overall Dimension(mm)||6550×2050×2600, 2820|
|(length ×width×height )|
|Compress box dimension (mm)||(2300+500)×2000×1550|
|(length ×width×height at side)|
|Compress box Capacity||6cbm, 2.1 ton|
|Material of Compress box||Q235B high quality carbon stell|
|Thickness of Compress box||Bottom 4mm, side 4mm|
|Filler/Stuffing capacity (m3)||1 m3|
|Filled lifting time||8~12s|
|Discharging / unloading time||30-40s|
|Max unloading force||16MPa|
|Max crushing compression force.||14MPa|
|Controller||Electronically controlled with manual|
|Loading Medium||House hold waste (not including construction waste)|
|Colors||White / Blue / Yellow or any color of customized|
|Production lead time||30-45 days|
Product Detail Display

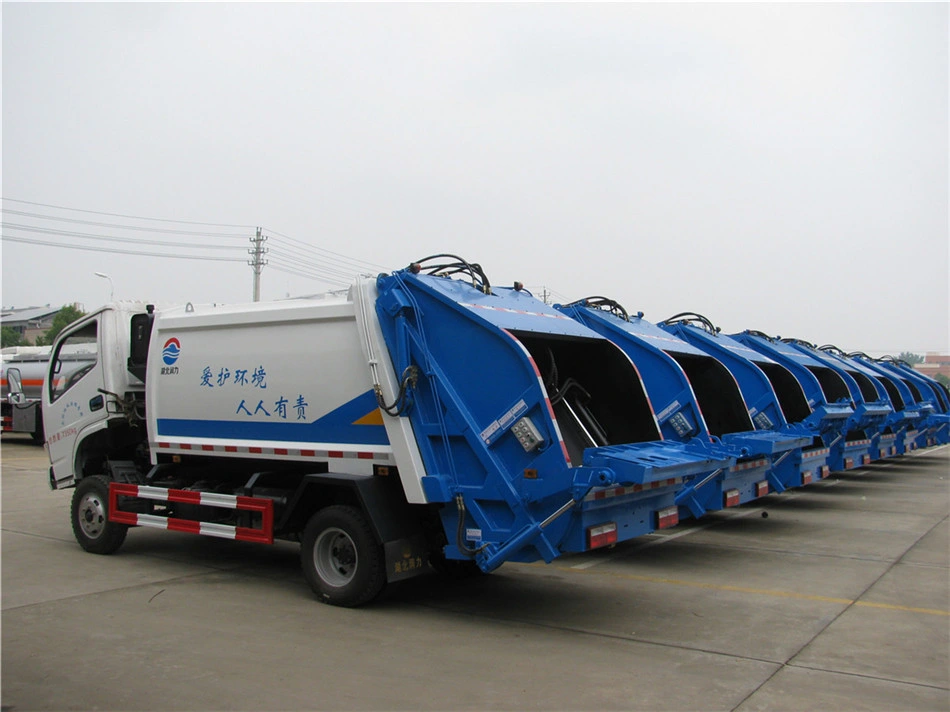

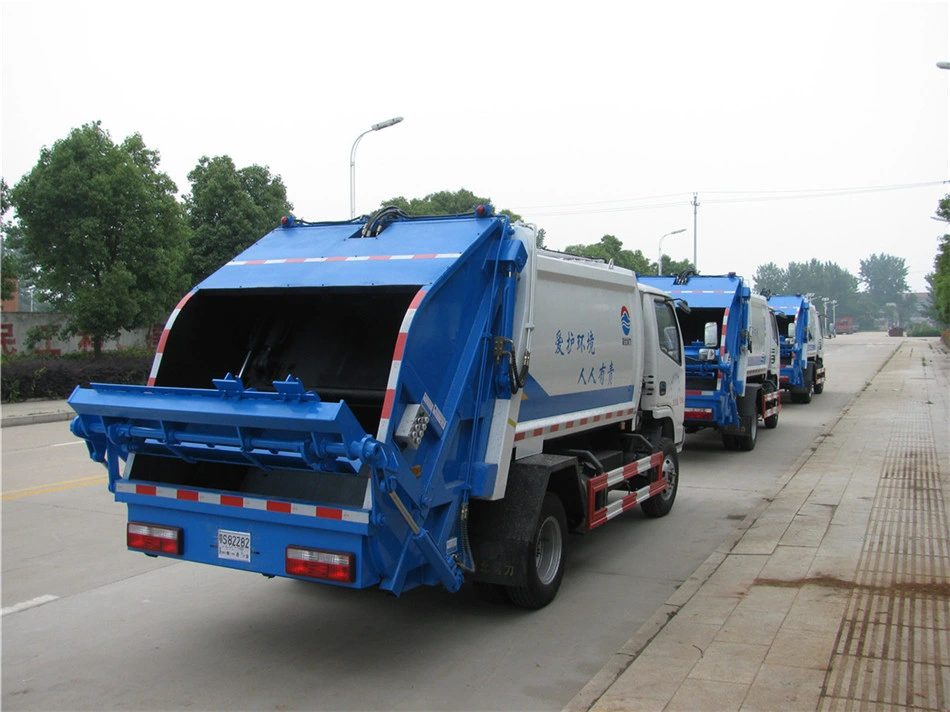

Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for sale. It is developed basis on European advanced technology and China's basic national conditions.The truck's performance is in domestic leading level and mainly suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for sale Main characteristic:
-Circular cargo box that is the first application of the country and is registered at the patent office.
-Application of high tensile steel (ATOS60) to increase durability.
-One-touch operation simultaneously with a hand lever operation.
-Horizontal ejection by using a string three stage discharging cylinder.
-Board and low feeding entrance.
-Installation of sewage tank under the hopper and cargo box.
-Possibility of emission work both in the driver's seat and the outside.
Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for salee can be with 3 types of rear loadong method as below for you reference. Bucket mechanism feeding type, scoop type, swing arm type.
Related Products Display:
Except Factory supplied 4X2 6m3 compression garbage truck, compression waste truck, compression refuse truck for sale, we also have some other brand and different size of compression garbage truck, compression waste truck, compression refuse truck for sale as below photos, welcome to contact us for details checking. Thanks!

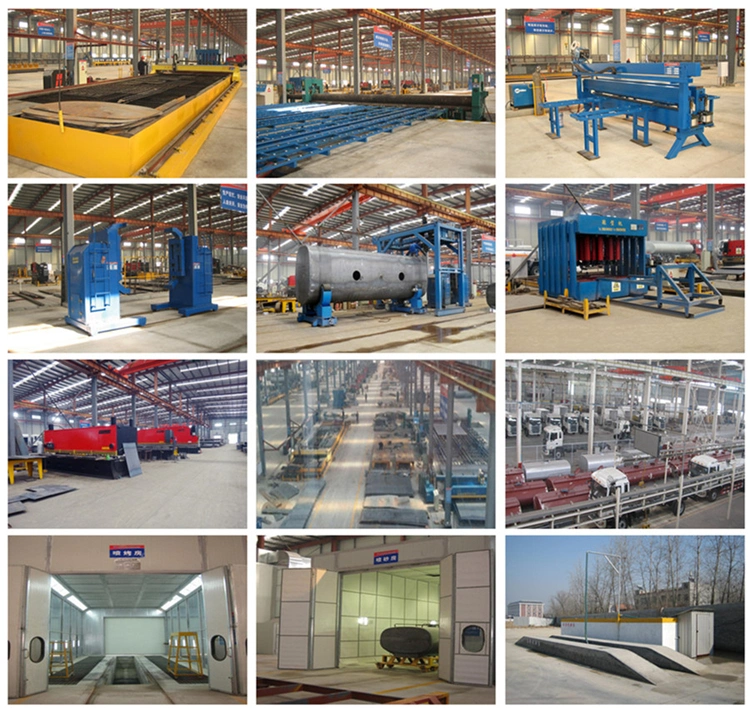

With many years experience in the precise design and manufacture of special automobile, RunLi has become one of the leading special automobile manufacturers in the China.lie in famous chinese automobile city- Suizhou.
Runli has specialized in producing the following series of automobile.
1. Liquefied gas tanker;
2. Chemical liquid tanker;
3. Fueling truck and Refueling tanker;
4. Asphalt truck;
5. Bulk powder goods tanker / Bulk cement tanker / Peak field cementing tanker;
6. Concrete mixer carrier;
7. Sprinkler truck/watering truck;
8. High-pressure cleaning truck;
9. Vacuum sewage suction truck / fecal suction truck;
10.compression garbage truck, compression waste truck, compression refuse truck;
11. Overhead working truck;
12. Wrecker tow truck;
13. Fire-fighting truck / rescue apparatus;
14. Self-Motion transporter / Low platfore semitrailer transporter;
15. Storage truck / Van semitrailer transporter;
16. Food truck;
Q1: Are you a manufacturer or trading company?
We are manufacturer with 10 years of production experience.
Q2: What about the shipping methods?
Container, Bulk Shipment as well as Ro-Ro Shipment, it depends on truck overall dimension.
Q3: What about the payment methods?
We accept T/T and L/C.
Q4: How much does it cost to ship to my country?
It depends on seasons. Shipping Feight is different in different seasons. You can consult us at all times.
Q5: What's your delivery time?
Usually our production leadtime is 25-45 days after getting 50% deposit, it depends on quantity.
Q6: Can you customize based on my specification?
Yes, we have professional R&D centers to support you.
The quality warranty period of our products is within 12 months after delivery of products.
1.For normal damaged parts claims, service team will reply the distributor with in 3 working days.
2. For serious vehicle problems, it will take us 5 working days to reply the distributor,
since our service team has to report it to our factory for final judgement.
Payment & Delivery time
1. TT or LC AT SIGHT 50% down payment, 50% balance paid before shipment,all by T/T or by 100% LC at sight.
2.Min order: 1 units
3.Delivery time: 25-45 days after get the deposit or LC
4.Packing: nacked package, waxed before delivery by sea or land.
5.Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc.
We also have some other different brands, different size, and different price period of compression garbage truck, compression waste truck, compression refuse truck for you choosing, welcome to contact us for detail checking.
